DD1800 Diotec Semiconductor

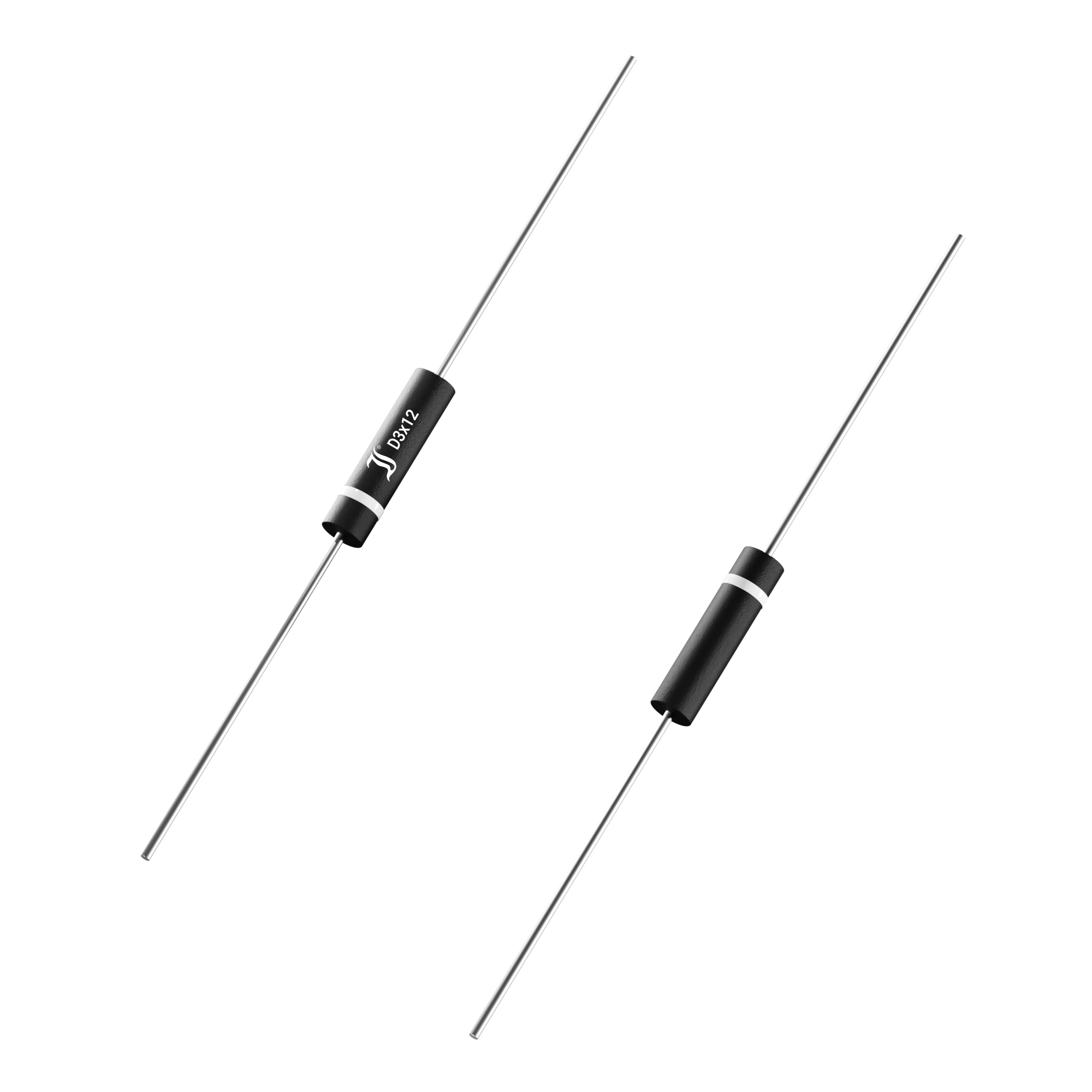

HV Diode, D3x12, 18000V, 20mA, 150ns
Product Features
| Repetitive Peak Reverse Voltage | |
| VRRM | 18000 V |
| Maximum Average Forward Rectified Current | |
| IFAV | 0.02 A |
| Reverse Recovery Time | |
| trr | 150 ns |
| Junction Temperature | |
| Tjmax | 150 °C |
| Peak Forward Surge Current | |
| IFSM | 3.00 A |
| Forward Voltage | |
| VF | 40.00 V |
| @ IF | 0.01 A |
| Leakage Current | |
| IR | 5.000 µA |
| @ VR | 18000 V |
| Junction Capacitance | |
| IR | 5.000 µA |
| @ VR | 18000 V |
